Tool Component Identification

Button/Switches/Fuse/Fuse holder/Battery compartment/Battery level/LED Indicators/display/Interface/ knob

Open Button
Closed Button
Monitor Display
Fault Indicator Mode Light
Removable 4-Pin Adaptor
Power Socket
Fault Indicator Mode Switch
Device Power Switch
Short Protection Fuses

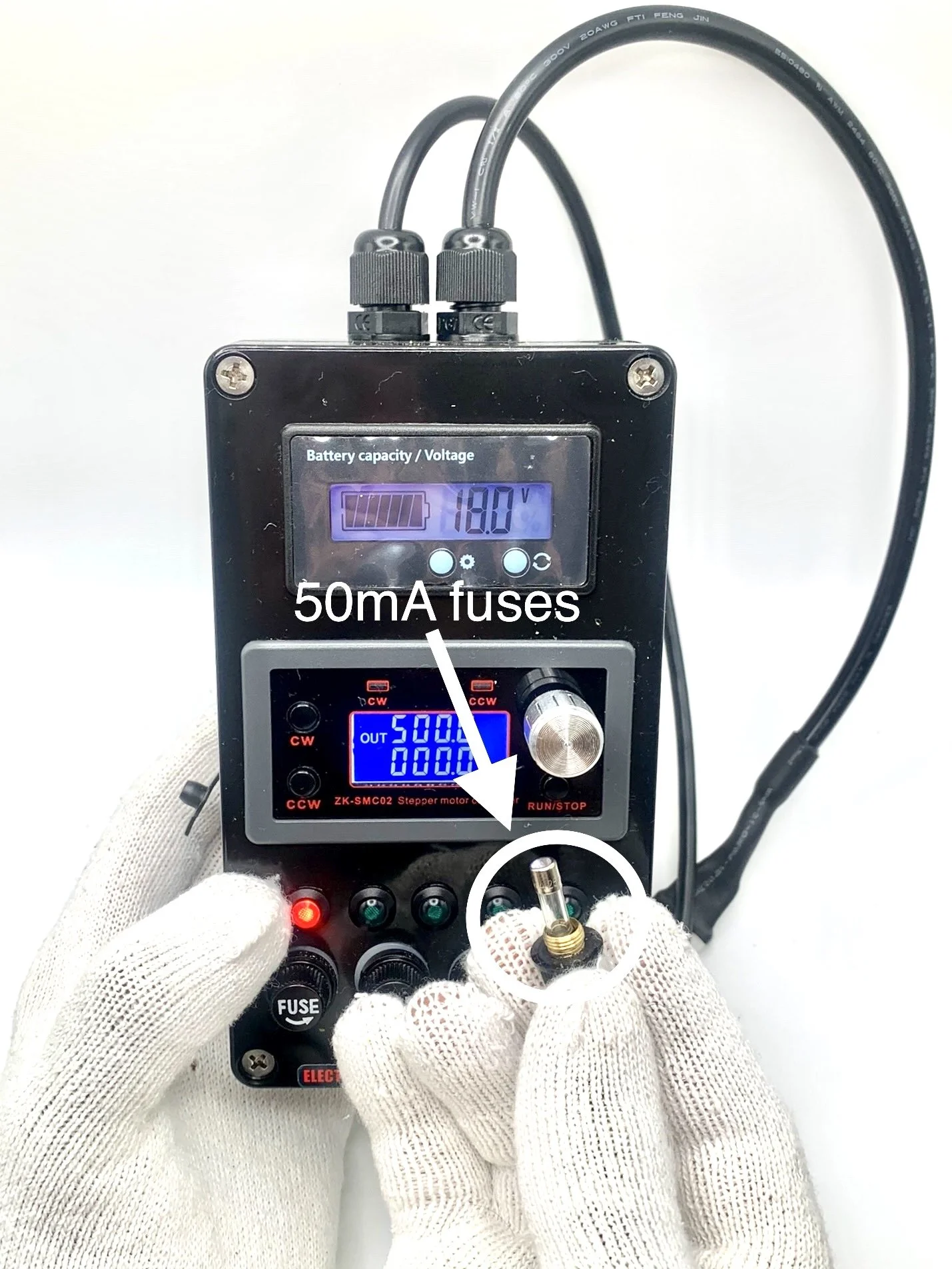

50mA Fuse
EEV Close Indicator LED Light
EEV Open Indicator LED Light
Tool Panel Mount Magnet
9VDC Battery Compartments
Settings Knob
